This article explains what Interactive Maps are on the RMS Booking Engine, what guests can do with them, and where to find how to request or update one.
Overview

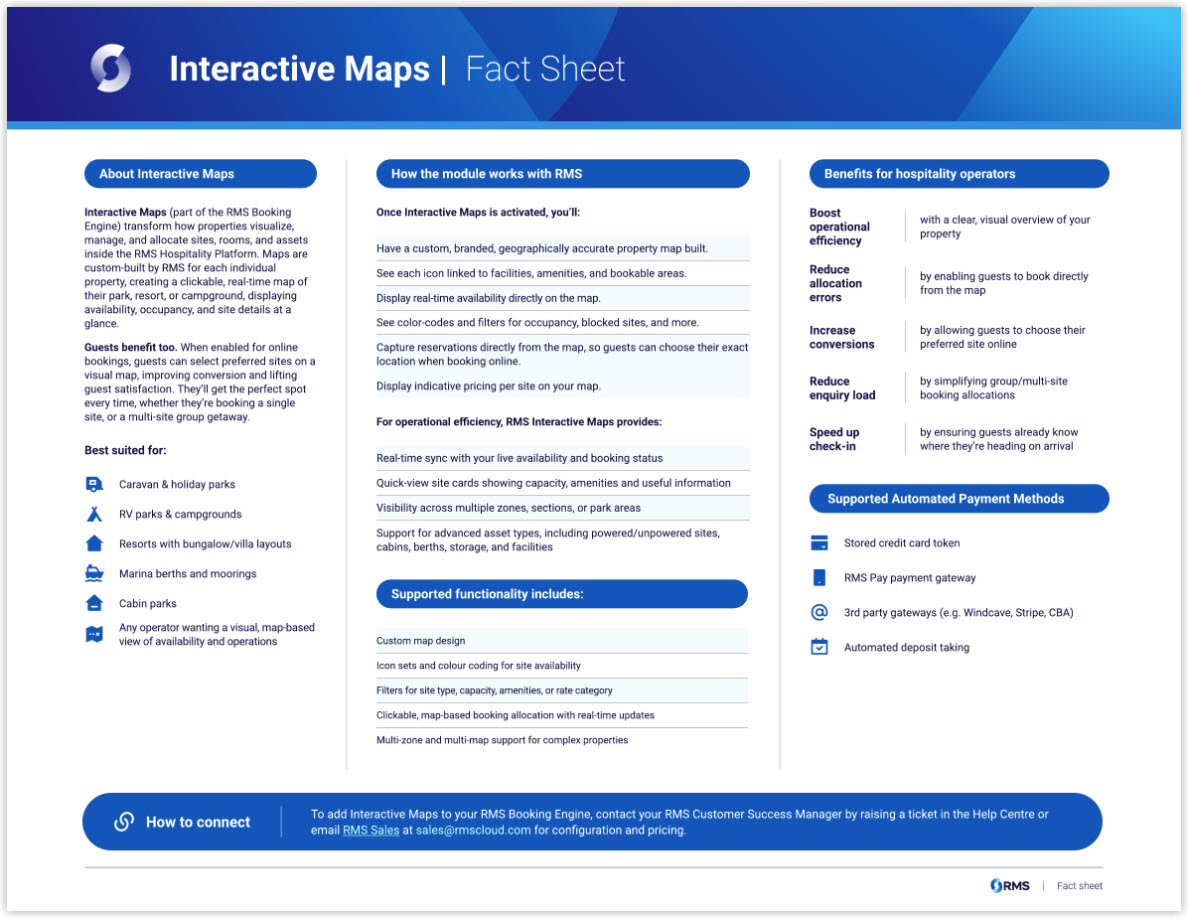

Interactive Maps, part of the RMS Booking Engine, let guests choose and book their exact site, or multiple sites for group bookings, directly from a geographically accurate, real-time map. Guests can filter by amenities; the experience is mobile-optimised, and it flows straight through to payment.
An Interactive Map is only available via the RMS Booking Engine, which is activated as part of the Online module.
Please Note! RMS is highly configurable. Some Terminology, User Access & Permissions, Images, Labels, and Functions used in these articles may differ from your setup. For more information, see Understanding RMS Help Centre Articles.
What can guests do on the Interactive Map?
Explore the park or property visually – see the layout, locations, and nearby facilities.
Click on individual sites/rooms to view details like name, type, and key information.
See live availability and pricing for the dates they’ve selected.
Choose their preferred site/room and book directly from the map, without needing to go back to a long list.
- Filter the map by amenity, so only Categories with the features they selected can be booked.
- Filter the map by power, so only powered or unpowered sites, as the guest chooses, can be booked.
On desktop, guests use the Interactive Map from the search results:
-
Select Map View on the search results.
-
Select a site on the map to see its details and rates, then select Book now to book it. Select List View to return to the search results.
Why use Interactive Maps?
- Delivers a modern, “pick your own site” experience that guests expect. A live, geographically accurate map replaces static images and guesswork, letting guests explore your property and choose the site that's right for them.
- Drives more direct bookings. More bookings come straight to you instead of through a third party.
- Makes group bookings easy. Guests can see which sites sit next to each other and book them all together in one go.
- Makes rebooking effortless. Returning guests can find and book their favourite site directly.
- Reduces phone and email enquiries because guests can see exactly where they'll be staying, what's nearby, and whether their favourite site is available, so your front desk spends less time answering the same questions.
- Helps reduce allocation issues and disputes, as guests choose their own location with full visibility, so there's no gap between what they expected and what they arrive to find.
Tip! Bookings made via the Interactive Map on the RMS Booking Engine will drop into RMS as Fixed. You can configure Area Selection Charges as an optional setting.
Important! If a guest doesn't see a map when booking, it simply means the property hasn't enabled the Interactive Map for their online bookings yet.
Please Note! Online Maps cannot be edited or updated directly in RMS. You must request all changes via a Support Ticket, providing the details in How to Get or Update an Interactive Map for Online Bookings.
Filtering the Interactive Map by Amenity
Guests can filter the Interactive Map by amenity, such as an ocean view, using the Filters button on the map. The amenities listed are the Category Attributes that have RMS Online Filter selected and are assigned to at least one Category.
After a guest selects one or more amenities and selects Show Results, the Interactive Map shows:
- Categories that have every selected amenity as available to book.
- Categories that are available but do not have every selected amenity as greyed out. These cannot be selected or booked.
Selecting Clear all in the Filters window removes the filters and returns the full Interactive Map. Amenity filters work the same way on the Booking Engine list view. For details, see RMS Booking Engine.
Filtering the Interactive Map by Power
Guests can filter the Interactive Map to powered or unpowered sites once RMS has turned the Power filter on for the property and at least one Site Category has Power Options ticked on its Category Online Options tab. The Power filter has three options: All, Powered, and Unpowered, and All is selected by default. It is available when the guest is viewing all Category Classes or the Site Category Class, and is hidden for Accommodation and Dock.
- Desktop: the Power filter sits in the same row as the Category Class filters on the map, after the label Power, and Powered and Unpowered show as icons only.
- Mobile: the Power filter is in the Filters window, after the Category Class and dwelling filters and before the amenities.
When a guest selects Powered or Unpowered, the Interactive Map shows:
- Site Categories with the selected power status as available to book.
- Site Categories with the other power status, and Site Categories without Power Options ticked, are greyed out. Selecting All shows them as available again.
- Accommodation and Dock Categories are unchanged, as power never filters them.
Each available site in a Site Category with Power Options ticked shows its power status as an icon to the right of its price: a green plug for Powered, or a red plug with a line through it for Unpowered. The icon is shown whether or not the guest has used the Power filter, and even when the Power filter is not turned on for the property. Greyed-out sites show no price and no icon. When the guest opens a site, its details show Powered or Unpowered after its Category Class label and any selected dwelling type.
On the mobile Interactive Map, Clear all in the Filters window resets every filter in the window, including the Category Class and Power filters.
The Power filter is also available on the Booking Engine list view, and RMS turns it on for each property together with amenity filters. For details, see RMS Booking Engine.
No Availability Message
If a guest searches for dates or guest numbers with no matching availability, the map displays a standard built-in message: "We're fully booked, please change dates or guests to see availability." This message also displays when the search does not meet a stay requirement, such as a minimum length of stay.
Please Note! This message is system-generated and cannot be edited or customised. The No Availability Custom Message configured in Online Options Page Settings applies to the Booking Engine list view only.
How to Get or Update an Interactive Map

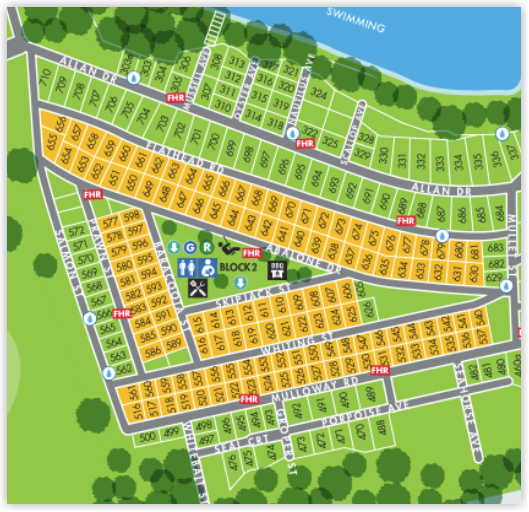

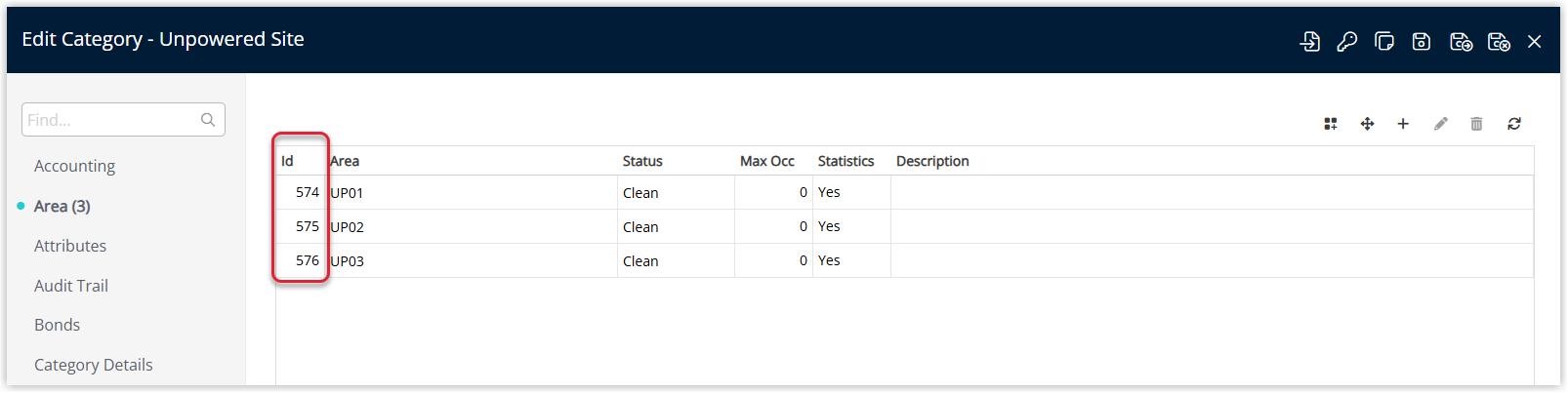

You get a new online Interactive Map, or change an existing one, by logging a support ticket with the information RMS needs to build your map: the number of areas and amenities, an overlay image of your map, the Area ID in RMS for each area, and a description for each amenity.
For the full step-by-step list of what to send, the example support ticket, what happens after you submit, and pricing, see How to Get or Update an Interactive Map for Online Bookings.
For updates to an existing map, also include:
| What we need | Details |
| A labelled overlay | Mark changes clearly using letters (A, B, C, etc.) |
| A written list of changes | Matching each label to the change required (e.g. “A = combine areas 43 and 65 into area 90”) |
This approach helps RMS implement changes accurately and efficiently.
Removing an Interactive Map
Deleting an existing online Interactive Map can be actioned by Users at the Property who have the required Security Profile access.
Frequently Asked Questions
What's the difference between Online and In-house Interactive Maps?
They're separate features. Online Interactive Maps appear on your live RMS Booking Engine for guests. In-house Interactive Maps are only available for use in‑house and are not reflected online. Any updates made to the In-house Interactive Maps will not appear on the Online Interactive Maps, and vice versa.
