Generate access keys for shared spaces using the integrated door lock module.

Overview

Common Areas are shared spaces at a property—such as car parks, pools, or gym facilities—that require key access. These areas can be made accessible to guests during their stay through integration with a compatible Door Lock module.

The Door Locks module allows RMS to integrate with partnered smart lock or digital lock systems, enabling seamless key generation and access management.

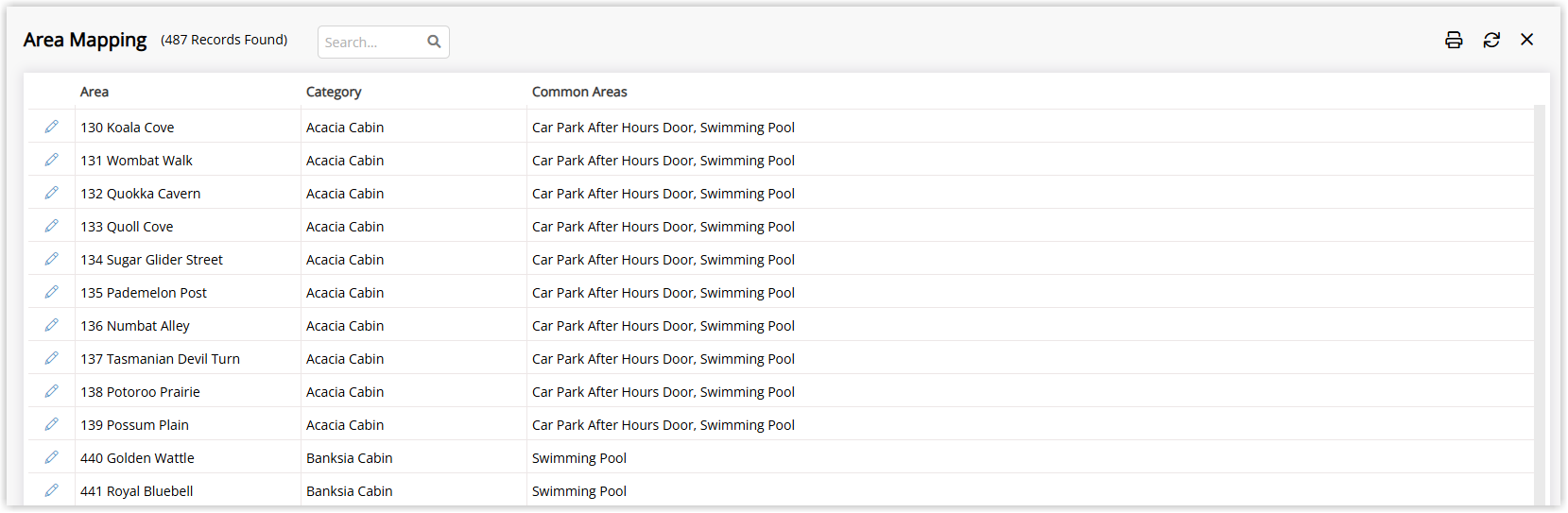

• Common Area Mapping is used to link shared spaces (Common Areas) with specific Areas in the system. When a Key is created on a Reservation, access to the associated Common Areas is automatically enabled.

• Key Creation: Keys can be encoded directly from the Reservation using the Key icon .

• The Key Serial Number will be recorded in the Reservation's Audit Trail for tracking purposes.

Configuration

In the side menu of RMS, go to Setup > Door Locks > Common Areas.

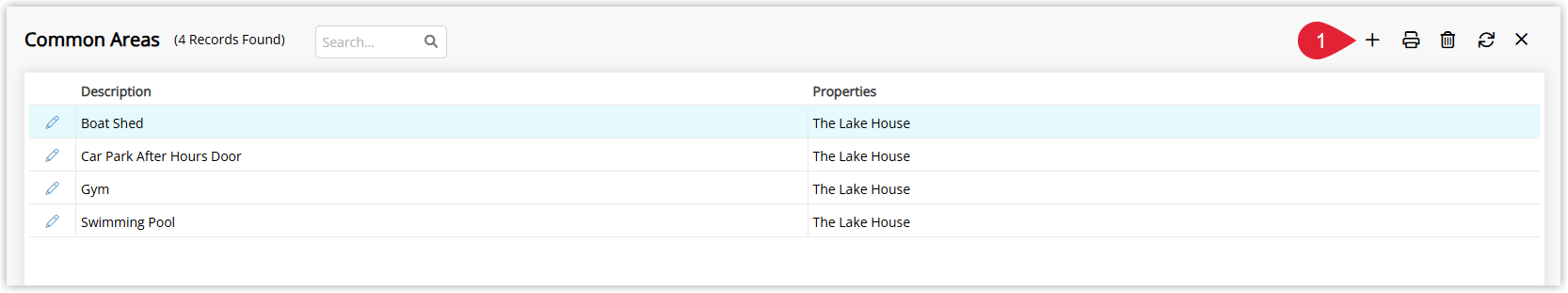

1. Select the Add icon.

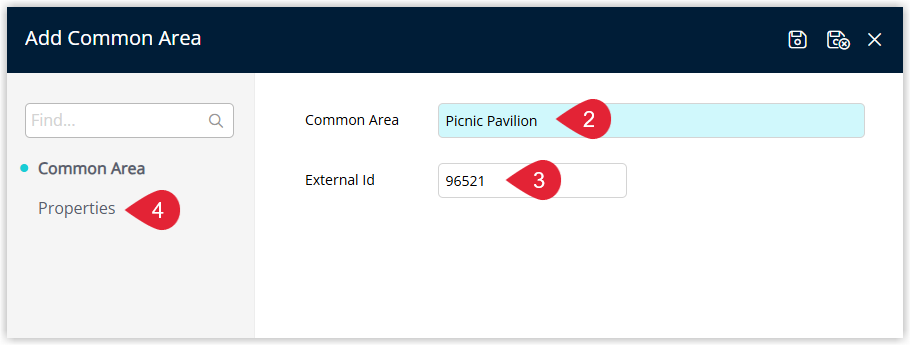

2. Enter the Common Area.
3. Input an External ID.
4. Navigate to the Properties menu.

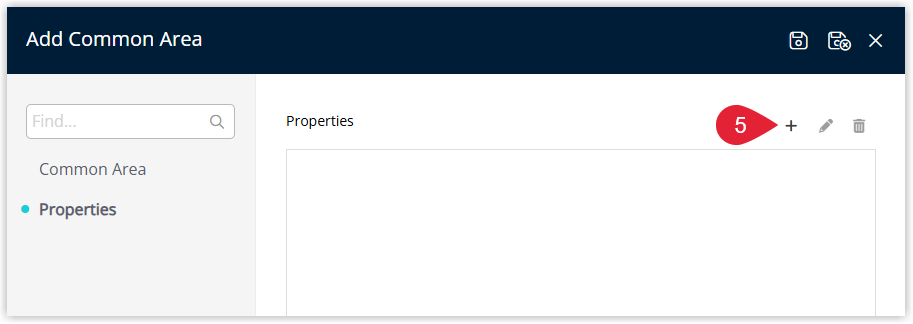

5. Select the Add icon.

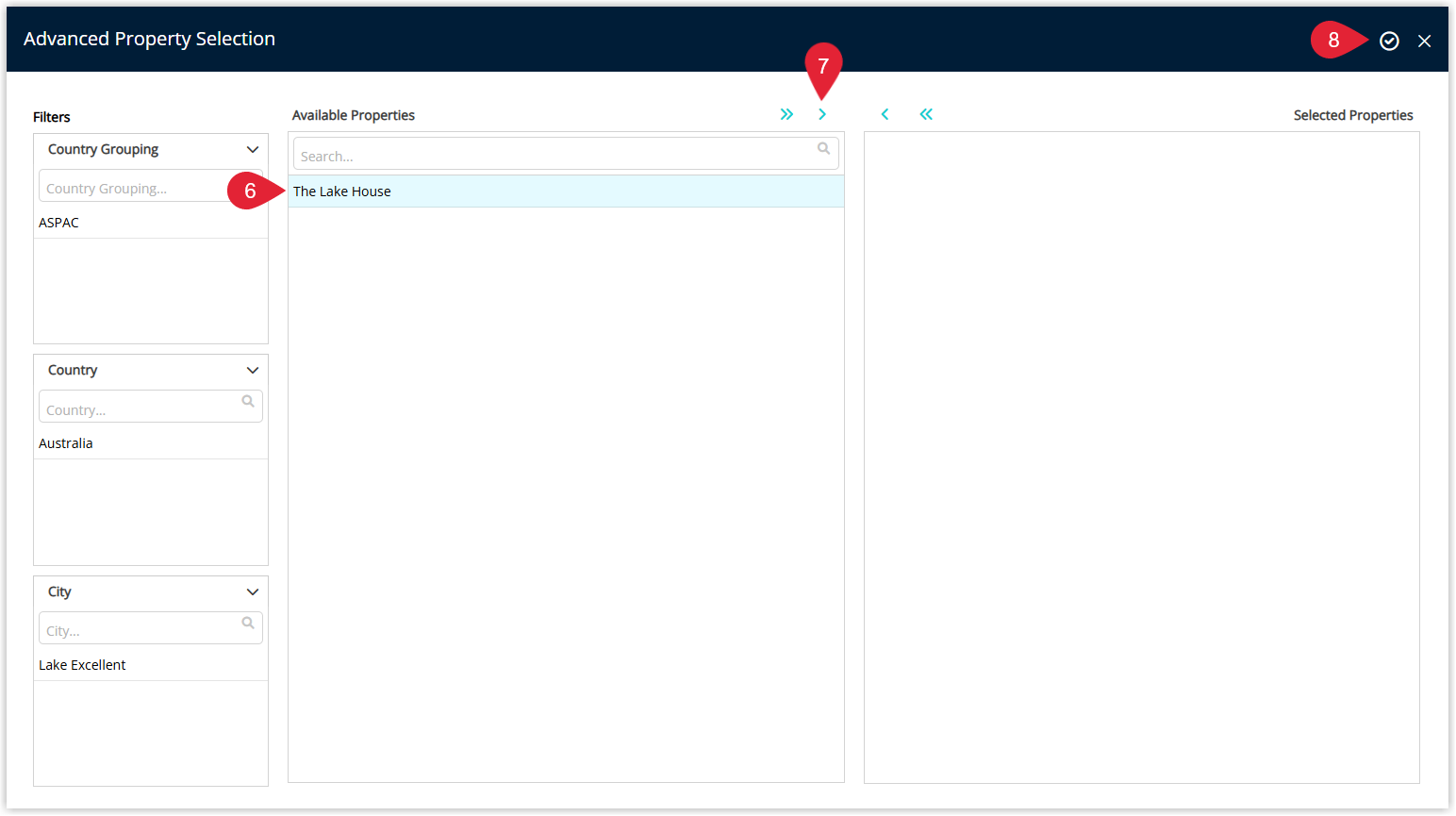

6. Highlight a Property.
7. Choose the Allocate icon.
8. Select the 'Apply/Exit' icon.

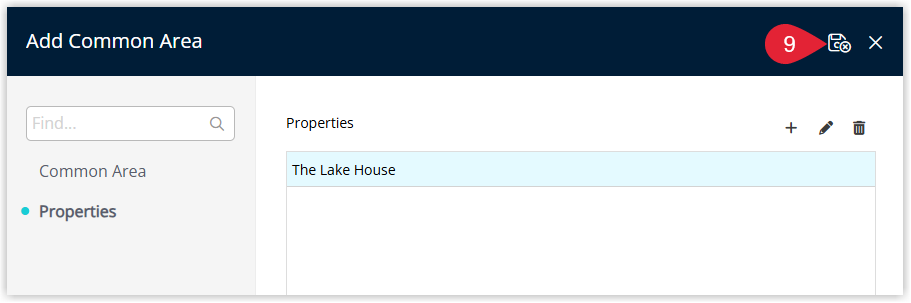

9. Choose Save/Exit to complete the common area configuration.




Next Steps

1. Set up Common Area Mapping to link a Common Area with a specific Area, enabling key creation on a Reservation.
